MW22系列鋼坯用起重電磁鐵為應用最為廣泛的長方形電磁鐵，主要適用于吊運方坯、鋼錠和大型初軋坯等，也可用于吊運圓坯、型鋼等。方坯、鋼錠和大型初軋坯吊具，針對不同類型的鋼材，采用不同的磁路設計，具有常溫型和高溫型起重電磁鐵。
MW22系列常溫型起重電磁鐵（額定電壓DC220V，通電持續率TD-60%）
| 型 號 |
冷態功率(KW) |
冷態電流(A) |

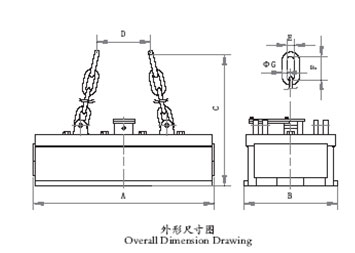

外形尺寸（mm） |
重量
(KG) |
起重能力舉例（兩臺聯吊） |
| 150方坯 |
200方坯 |
| A |
B |
C |
D |
E |
F |
G |
長度(m) |
根數(pcs) |
長度(m) |
根數(pcs) |
| MW22-9065L/1 |
4.85 |
22.0 |
900 |
650 |
1050 |
500 |
110 |
180 |
35 |
1420 |
11 |
5 |
9 |
4 |
| MW22-11065L/1 |
5.6 |
25.5 |
1100 |
1050 |
500 |
110 |
180 |
40 |
1720 |
6 |
5 |
| MW22-14065L/1 |
6.9 |
31.3 |
1400 |
1100 |
600 |
125 |
200 |
45 |
2150 |
8 |
6 |
| MW22-17065L/1 |
8.1 |
36.5 |
1700 |
1200 |
600 |
125 |
200 |
50 |
2650 |
10 |
7 |
| MW22-21065L/1 |
10.1 |
45.7 |
2100 |
1250 |
700 |
140 |
250 |
55 |
3110 |
12 |
9 |
| MW22-11070L/1 |
5.6 |
25.5 |
1100 |
700 |
1050 |
500 |
110 |
180 |
40 |
1860 |
12 |
6 |
10 |
5 |
| MW22-14070L/1 |
6.9 |
31.3 |
1400 |
1100 |
600 |
125 |
200 |
45 |
2330 |
8 |
6 |
| MW22-17070L/1 |
8.9 |
40.3 |
1700 |
1200 |
600 |
125 |
200 |
50 |
2820 |
10 |
7 |
| MW22-21070L/1 |
10.2 |
45.8 |
2100 |
1250 |
700 |
140 |
250 |
55 |
3290 |
12 |
9 |
| MW22-11080L/1 |
5.9 |
26.8 |
1100 |
800 |
1100 |
600 |
140 |
250 |
45 |
2160 |
14 |
6 |
11 |
5 |
| MW22-14080L/1 |
7.4 |
33.4 |
1400 |
1200 |
600 |
125 |
200 |
50 |
2700 |
8 |
6 |
| MW22-17080L/1 |
9.03 |
41 |
1700 |
1250 |
600 |
140 |
250 |
55 |
3210 |
10 |
7 |
| MW22-21080L/1 |
10.2 |
45.8 |
2100 |
1350 |
700 |
140 |
250 |
60 |
3840 |
12 |
9 |
| MW22-14090L/1 |
7.3 |
33 |
1400 |
900 |
1250 |
600 |
140 |
250 |
55 |
3010 |
16 |
8 |
12.5 |
6 |
| MW22-17090L/1 |
8.9 |
40.5 |
1700 |
1350 |
600 |
140 |
250 |
60 |
3560 |
10 |
7 |
| MW22-21090L/1 |
10.0 |
45.5 |
2100 |
1350 |
700 |
160 |
250 |
65 |
4280 |
12 |
9 |
| MW22-25090L/1 |
12.0 |
54.4 |
2500 |
1350 |
600 |
160 |
250 |
70 |
5130 |
15 |
11 |
| MW22-140100L/1 |
7.3 |
33.5 |
1400 |
1000 |
1350 |
600 |
140 |
250 |
60 |
3430 |
17.5 |
8 |
14 |
6 |
| MW22-170100L/1 |
8.9 |
40.1 |
1700 |
1350 |
700 |
160 |
250 |
65 |
3930 |
10 |
7 |
| MW22-210100L/1 |
10.0 |
50.3 |
2100 |
1350 |
700 |
160 |
250 |
70 |
4910 |
12 |
9 |
| MW22-250100L/1 |
12.0 |
59.2 |
2500 |
1400 |
700 |
160 |
250 |
75 |
5860 |
15 |
11 |
MW22系列高溫型起重電磁鐵（額定電壓DC220V，通電持續率TD-60%）
| 型 號 |
冷態功率(KW) |
冷態電流(A) |
外形尺寸（mm） |
重量
(KG) |
起重能力舉例（兩臺聯吊） |
| 150方坯 |
200方坯 |
| A |
B |
C |
D |
E |
F |
G |
長度(m) |
根數(pcs) |
長度(m) |
根數(pcs) |
| MW22-9065L/2 |
4.7 |
22.0 |
900 |
650 |
1050 |
500 |
110 |
180 |
35 |
1380 |
11 |
5 |
9 |
4 |
| MW22-11065L/2 |
5.5 |
25.0 |
1100 |
1050 |
500 |
110 |
180 |
40 |
1680 |
6 |
5 |
| MW22-14065L/2 |
7.1 |
32.3 |
1400 |
1100 |
600 |
125 |
200 |
45 |
2200 |
8 |
6 |
| MW22-17065L/2 |
8.8 |
36.4 |
1700 |
1200 |
600 |
125 |
200 |
50 |
2710 |
10 |
7 |
| MW22-21065L/2 |
11 |
50.0 |
2100 |
1250 |
700 |
140 |
250 |
55 |
3180 |
12 |
9 |
| MW22-11070L/2 |
5.7 |
26.0 |
1100 |
700 |
1050 |
500 |
110 |
180 |
40 |
1820 |
12 |
6 |
10 |
5 |
| MW22-14070L/2 |
7.1 |
32.3 |
1400 |
1100 |
600 |
125 |
200 |
45 |
2380 |
8 |
6 |
| MW22-17070L/2 |
9.1 |
41.4 |
1700 |
1200 |
600 |
125 |
200 |
50 |
2900 |
10 |
7 |
| MW22-21070L/2 |
11.2 |
50.9 |
2100 |
1250 |
700 |
140 |
250 |
55 |
3380 |
12 |
9 |
| MW22-11080L/2 |
6.0 |
27.3 |
1100 |
800 |
1100 |
600 |
140 |
250 |
45 |
2190 |
14 |
6 |
11 |
5 |
| MW22-14080L/2 |
7.5 |
34.1 |
1400 |
1200 |
600 |
125 |
200 |
50 |
2760 |
8 |
6 |
| MW22-17080L/2 |
8.8 |
40 |
1700 |
1250 |
600 |
140 |
250 |
55 |
3150 |
10 |
7 |
| MW22-21080L/2 |
10.5 |
47.7 |
2100 |
1350 |
700 |
140 |
250 |
60 |
3890 |
12 |
9 |
| MW22-14090L/2 |
7.6 |
33.6 |
1400 |
900 |
1250 |
600 |
140 |
250 |
55 |
3060 |
16 |
8 |
12.5 |
6 |
| MW22-17090L/2 |
9.6 |
43.5 |
1700 |
1350 |
600 |
140 |
250 |
60 |
3630 |
10 |
7 |
| MW22-21090L/2 |
11.2 |
50.9 |
2100 |
1350 |
700 |
160 |
250 |
65 |
4360 |
12 |
9 |
| MW22-25090L/2 |
12.2 |
55.5 |
2500 |
1350 |
600 |
160 |
250 |
70 |
5220 |
15 |
11 |
| MW22-140100L/2 |
7.4 |
33.6 |
1400 |
1000 |
1350 |
600 |
140 |
250 |
60 |
3510 |
17.5 |
8 |
14 |
6 |
| MW22-170100L/2 |
9.5 |
43.2 |
1700 |
1350 |
700 |
160 |
250 |
65 |
4120 |
10 |
7 |
| MW22-210100L/2 |
11.3 |
51.4 |
2100 |
1350 |
700 |
160 |
250 |
70 |
5010 |
12 |
9 |
| MW22-250100L/2 |
12.3 |
55.9 |
2500 |
1400 |
700 |
160 |
250 |
75 |
5970 |
15 |
11 |
